SL-110
SL-110

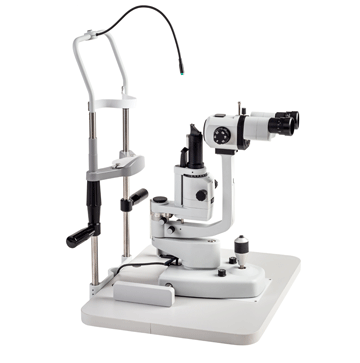

Frey SL-110 е биомикроскоп, с висока производителност, с точна диагностика осигуряващ надеждност по време на изследването и комфорт на изледвания и изледващия. Отпиката е с осигурява високото качество на обраа и отличната разделителна способност. С LED осветление интегрирано с осветлението към очите.

Slit, Projection system and Base general data
Minimum slit opening 0 mm
Slit maximum lenght 14 mm
Continuously adjustable slit length 1.8 - 13 mm continuously variable
Slit projection scale 1.2 x
Slit aperture diaphragms
1.8/ 0.2 / 5.5 / 9 / 14 mm
Filters clear, blue, yellow, diffuser, red-free, red
Slit rotation 0° - 180° with reference scale
Working distance - eye of patient/ prism surfacе 75 mm
Fixation lamp Green lamp
Chin-rest height adjustment 59 mm
Base travel 103 mm X–axis, 100 mm Y–axis, 35 mm Z–axis
Stereoscopic Microscope
Microscope type Convergent binocular optical microscope @ 8°
Magnification power selection system Five position rotating drum
Eyepiece 12.5x
Magnifying powers 6x 10x 16x 25x 40x
Field of view [mm] 36 22 14 9 5.6
Distance between pupils 48.5–80 mm
Slit angle +/-180° with reference scale
Objective lens working distance 111mm
Objective lens working angle 12°
Eyepiece diopter adjustment -5D to +5D
