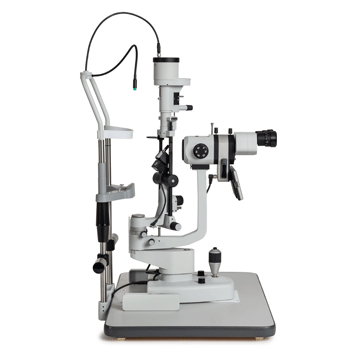

SL-100 |
|
Frey SL-100 е иновативен LED биомикроскоп. Осигурява прецизна и точна диагностика. С отлична оптика за високо качество на образа и висока разделителна способност. Високо ергономичен апарат с висока надежност и висок комфорт по време на изследване. |
|
| Технически характеристики | |
| Minimum slit opening | 0 mm |
| Slit maximum lenght | 14 mm continuously variable |
| Continuously adjustable slit length | 1.8 - 14 mm continuously variable |
| Slit projection scale | 1.2 x |
| Slit stops |
0.2/ 1 / 3 / 5 / 9 / 14 mm |
| Filters | clear, blue, diffuser, natural density, red free, yellow |
| Slit rotation | 0°- 180° with reference scale |
| Vertical Slit Tilting | 0°/ 5° /10° / 15°/20° |
| Working distance (Eye of patient /prism surface | 75 mm |
| Fixation lamp | Green lamp |
| Chin-rest height adjustment | 59 mm |
| Base travel | 103 mm X-axis, 100mm Y-axis, 35mm Z-axis |
| Стереоскопичен микроскоп | |
| Microscope type | Convergent binocular optical microscope @ 8° |
| Magnification power selection system | Five position rotating drum |
| Eyepiece | 12.5x |
| Magnifying powers | 6x 10x 16x 25x 40x |
| Field of view [mm] | 36 22 14 9 5.6 |
| Distance between pupils | 48.5 mm – 80 mm |
| Objective lens working distance | 111 mm |
| Objective lens convergence angle | 12° |
| Eyepiece diopter adjustment | from -6D to +6D |
