fr 1003
FR 1003 LED

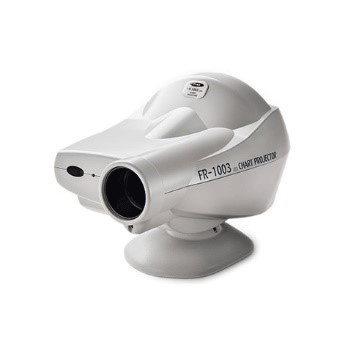

The FR-1003 e проектор за оптотипи за изледване на зрителната острота и функции на окото.отличава се с висока ефективност Thanks to the use of a LED as a light source, the device is maintenance-free. Three personalized test sequences can be programmed using the intuitive remote control. The projector is delivered with a remote control, projection screen, red-green and polarized glasses and a base, alternatively it can also be mounted on the wall.
Технически характеристики
Display size 24″ diagonal
Number of optotypes 36
Optotype change rate ~0,3s
Masks Vertical, horizontal, single, polarizing, red-green
Available tests Letters
Pictures
Digits E Snellen
Landolt rings
Red-green panel Dual polarizing panel
Astigmatism
Fixation point
Cross cylinder Schrober test
Worth Stereo
Two-color balance Foria / Foria with fixation Vertical and horizontal coincidence
Distance from screen from 2.9 to 6.1m (adjusted)
Light source White LED diode
Test brightness 220 cd / m2 (adjustable)
Projection angle ± 15°
Dimensions W310 x 191 x 200mm
Weight 4kg
Chin rest Electrically regulated (up/down)
Power supply 115-230 VAC 50/60 Hz

Брошура
